(EMI/EMC FILTER) DS1 SERIES

■SPECIFICATIONS
Model	Rated Voltage (AC,DC)	Rated Current	Temperature Rise	Operating Temperature
DS1-T03,F03	250V	3A	45℃ max.	-25℃ to + 85℃ Including temperature rise
DS1-T05,F05	250V	5A	45℃ max.
DS1-T08,F08	250V	8A	45℃ max.
DS1-T10,F10	250V	10A	45℃ max.
Note : All types are designed to meet the requirement of UL 1283, CSA 22.2, IEC 133200 : 1999 K60939
Test Voltage : 1500V AC one minute, line to earth.
Insulation Resistance : 300 Mohm min. at 500V DC.
Leakage Current : 0.5mA max.
Voltage Drop : 1V max. at rated current.
Discharge time : 0.4sec max.
Weight : 150g

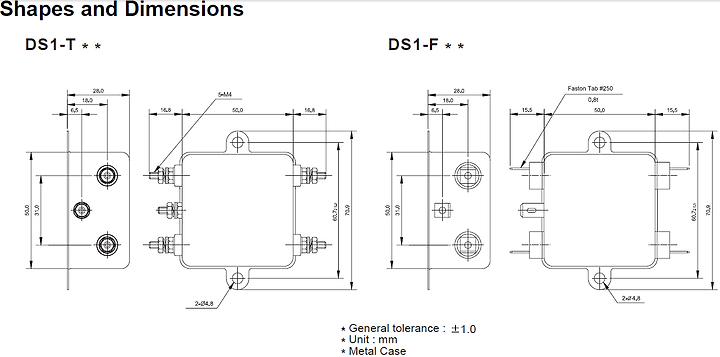

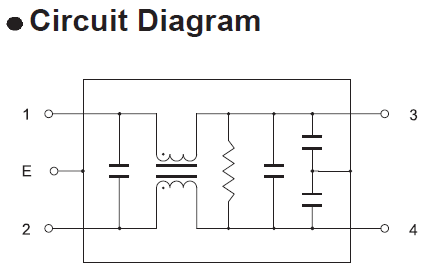

■Model Number Construction
DS1	-	T	03
|		|	|
Series Description		Input/Output Terminal style	Current Rating: AC rms
(Screw mounting		F: Faston Tab #250	03 : 3A, 05 : 5A
/Plastic Case)		T: M4 Stud	08 : 8A, 10 : 10A

■DS1 Series Item List
Amp.	(생산 가능 제품 및 추천 제품)
3	DS1-F03	DS1-T03
5	DS1-F05	DS1-T05
8	DS1-F08	DS1-T08
10	DS1-F10	DS1-T10
Bold(Yellow): Recommend Item(추천 품목)

DS1 Catalog.pdf

EMI 감쇄 효과를 최대한 활용하시려면 GROUND PIN 을 통한 접지 보다는,

METAL SHIELD 하부를 통한 면접지 사용을 권장합니다.
