(EMI/EMC FILTER) ES1 SERIES

■SPECIFICATIONS
Model	Rated Voltage (AC,DC)	Rated Current	Temperature Rise	Operating Temperature
ES1-F05, T05	250V	5A	30℃ max.	-25℃ to + 85℃ Including temperature rise
ES1-F08, T08	250V	8A	30℃ max.
ES1-F10, T10	250V	10A	30℃ max.
ES1-F15, T15	250V	15A	35℃ max.
ES1-F20, T20	250V	20A	45℃ max.
ES1-T30	250V	30A	40℃ max.
· Many variations in X and Y Capacitor value are available with approvals.
Note: Test Voltage : 1500V AC one minute, line to earth.
Insulation Resistance : 300 Mohm min. at 500V DC.
Leakage Current : 0.5mA max.
Voltage Drop : 1V max. at rated current.
Discharge time : 0.4sec max.
Weight : 250g for ES1 Series(except 720g for ES1-T30)
※ The temperature rise of ES1-*20 can be decreased to 30℃ by mounting
on 200mm x 200mm x t:1.0mm steel chassis.

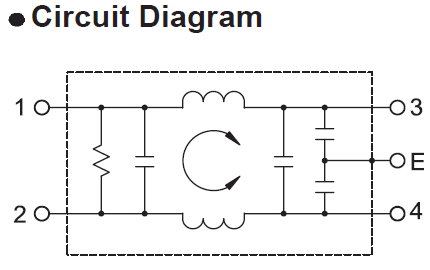

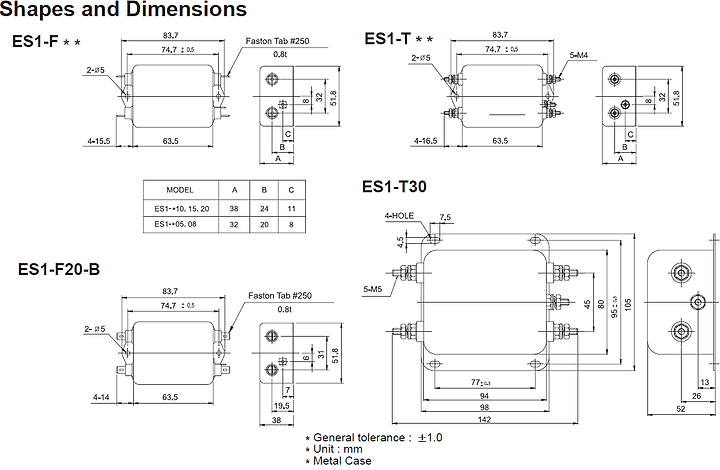

■Model Number Construction
ES1	-	T	05	- B
|		|	|	|
Series Description		Input/Output Terminal style	Current Rating: AC rms	Product Option
		F: Faston Tab #250	03 : 3A, 05 : 5A	(Ask to SIGNAL)
		T: M4 Stud	08 : 8A, 10 : 10A
		M5 Stud(ES1-T30 Only)

■ES1 Series Item List
Amp.	(생산 가능 제품 및 추천 제품)
5	ES1-F05	ES1-T05
8	ES1-F08	ES1-T08
10	ES1-F10	ES1-T10	ES1-F10-2E
15	ES1-F15	ES1-T15	ES1-F15-3E	ES1-F15D
20	ES1-F20	ES1-T20	ES1-F20B
30	ES1-T30
Bold(Yellow): Recommend Item(추천 품목)
